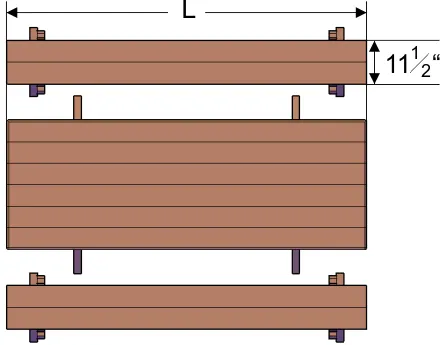

Top View

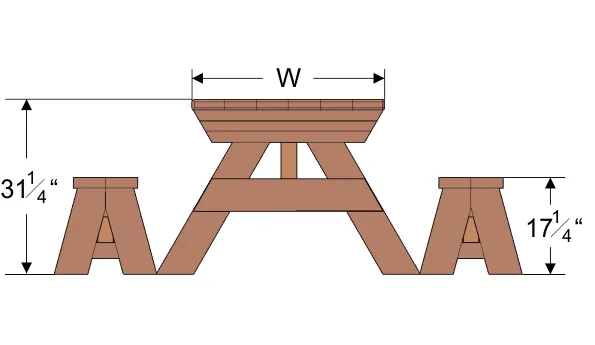

Side View
| Table Width (W) | 30 Inch. | 36 Inch. | 42 Inch. | 48 Inch. |
Tabletop widths are slightly narrower than the sizes listed due to the fact that each tabletop board is 1/4" less than 6" wide. So, instead of a standard 36" wide tabletop (the default setting), the 36" wide top with 6 boards shown in the drawing below is actually 34 1/2" W with a 30 1/2" H, and is 46 1/4" W without benches and 63" W with attached benches. The legs of the tables flare out to 46 1/4" W at the base/ground level.
Side View

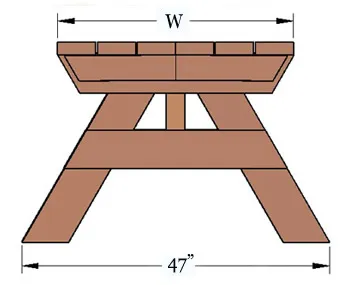

Front View
Benches, whether attached or unattached, have a bench top width of 11 1/2" (see drawing below). Unattached benches have legs that flare out to 18 1/4" at base/ground level. If you choose end tables with your set, they are built 6" shorter than the width of the table to ensure the benches don't bump into the side benches when used close to the table. Just let us know if you'd like something different.

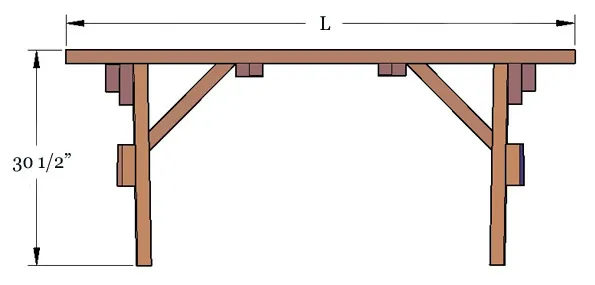

Side View
Bench top, Tabletop and leg boards are 1 7/8" thick. All tables over 8 'L have legs made with 2 7/8" thick timbers for proper support. All tables over 10' L have 3 sets of legs for proper support. The 10' table is usually made with just 2 sets of legs, but if you'd like a third set of legs, just let us know in the comment section at checkout (no extra charge).
The following table weights were calculated using the default 36" tabletop width in Redwood. Douglas-fir weighs approximately 20% more:
| Table Length (L) | Number of Adults Who Can Dine Comfortably (Based on a std. 36" width table) | Approx. Weight Table Alone | Approx. Weight Table with Benches | |
|---|---|---|---|---|
| Side Benches Only | Add End Benches | |||
| 4-Ft | 4 | 6 | 100 lbs. | 160 lbs. |
| 5-Ft | 6 | 8 | 125 lbs. | 185 lbs. |
| 6-Ft | 8 | 10 | 150 lbs. | 210 lbs. |
| 7-Ft | 8 | 10 | 170 lbs. | 240 lbs. |
| 8-Ft | 10 | 12 | 190 lbs. | 270 lbs. |
| 10-Ft | 12 | 14 | 230 lbs. | 330 lbs. |
| 12-Ft | 14 | 16 | 300 lbs. | 410 lbs. |
| 14-Ft | 16 | 18 | 340 lbs. | 460 lbs. |
Seating:
Seating estimates by length of table vary slightly depending on the selected seating configuration (adding End Benches generally adds 2-4 additional seats depending on table width). The Forever Picnic Bench (with flared leg) is the default style of bench used. If you'd like a different style, please see the option offered under Advance Options.
