The Del Norte Outdoor kitchen Pavilion is available with a length of 10' to 40' and a width of 8' to 24'. These dimensions reflect the overall roof measurements. A standard roof overhang is 12".

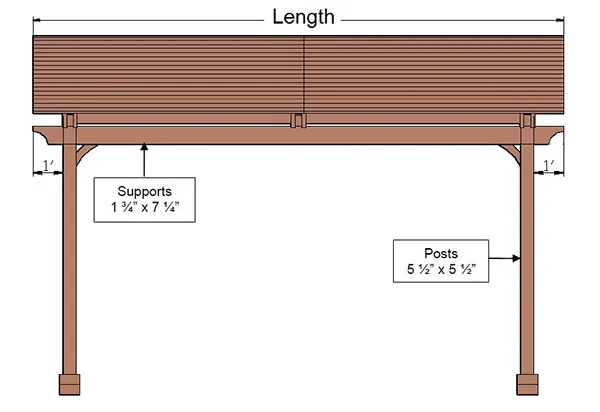

Side View

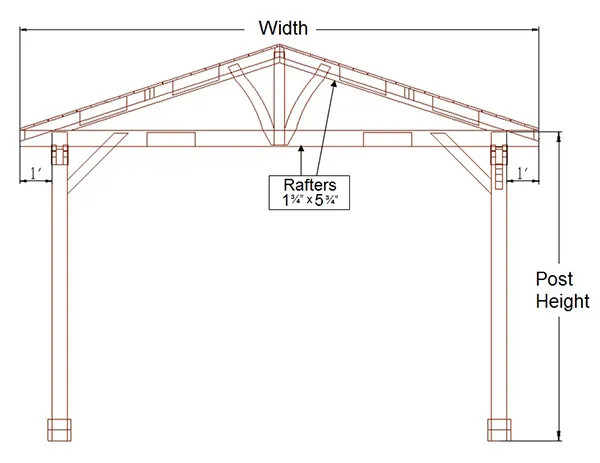

Front View

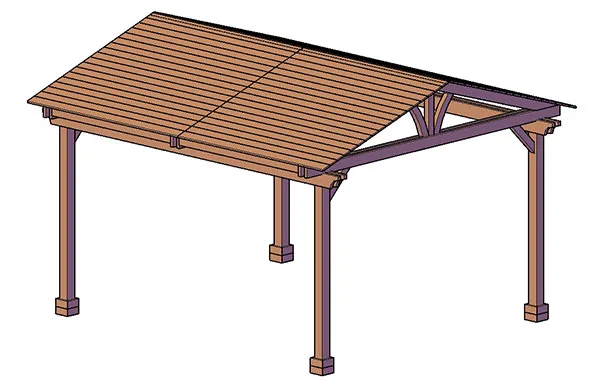

Isometric View
For additional long-term structural strength, we add solid timber blocking in-between the dual support timbers as shown in the drawing below. With this blocking, the dual supports are effectually converted into one solid 7 1/4" x 6 1/2" timber as shown below:
