When we receive a Pergola order, we first provide you with a detailed set of drawings based on the options and sizes chosen. The drawings will clearly show every detail and dimension from 3 different angles. They are an excellent tool for you to double check everything, making sure all is exactly as you'd like before beginning the building process. Drawings are emailed within 5 business days, and we'll revise your drawings as needed to make sure all details and sizing issues are perfected prior to beginning construction.
Below are some examples of drawings sent to prior customers:

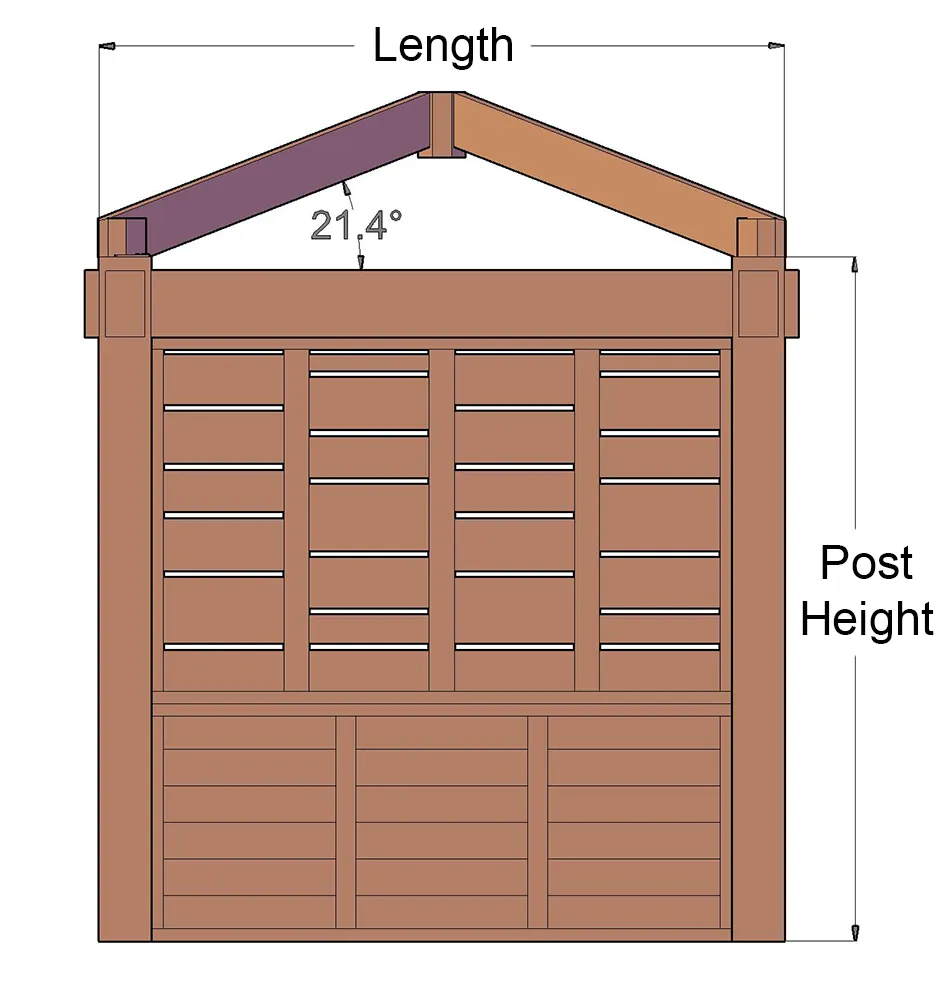

Length View

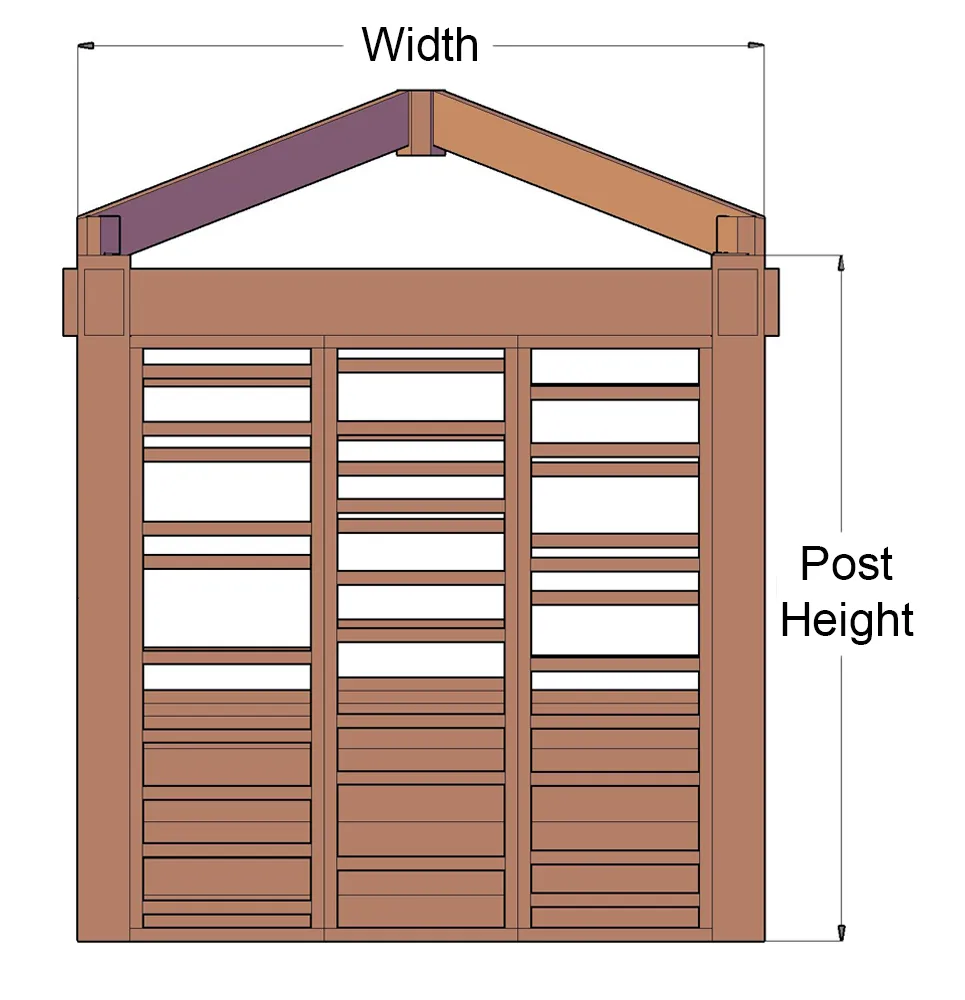

Width View

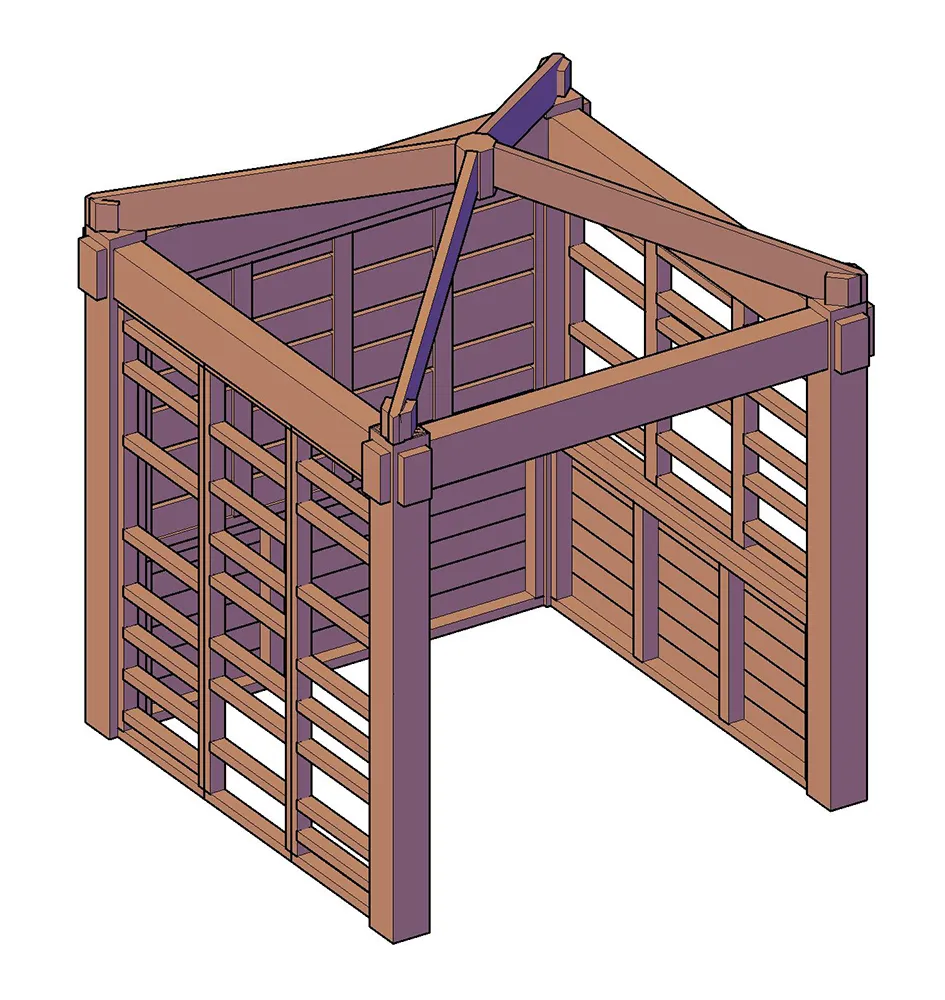

Isometric View
Roof overhang by custom request.

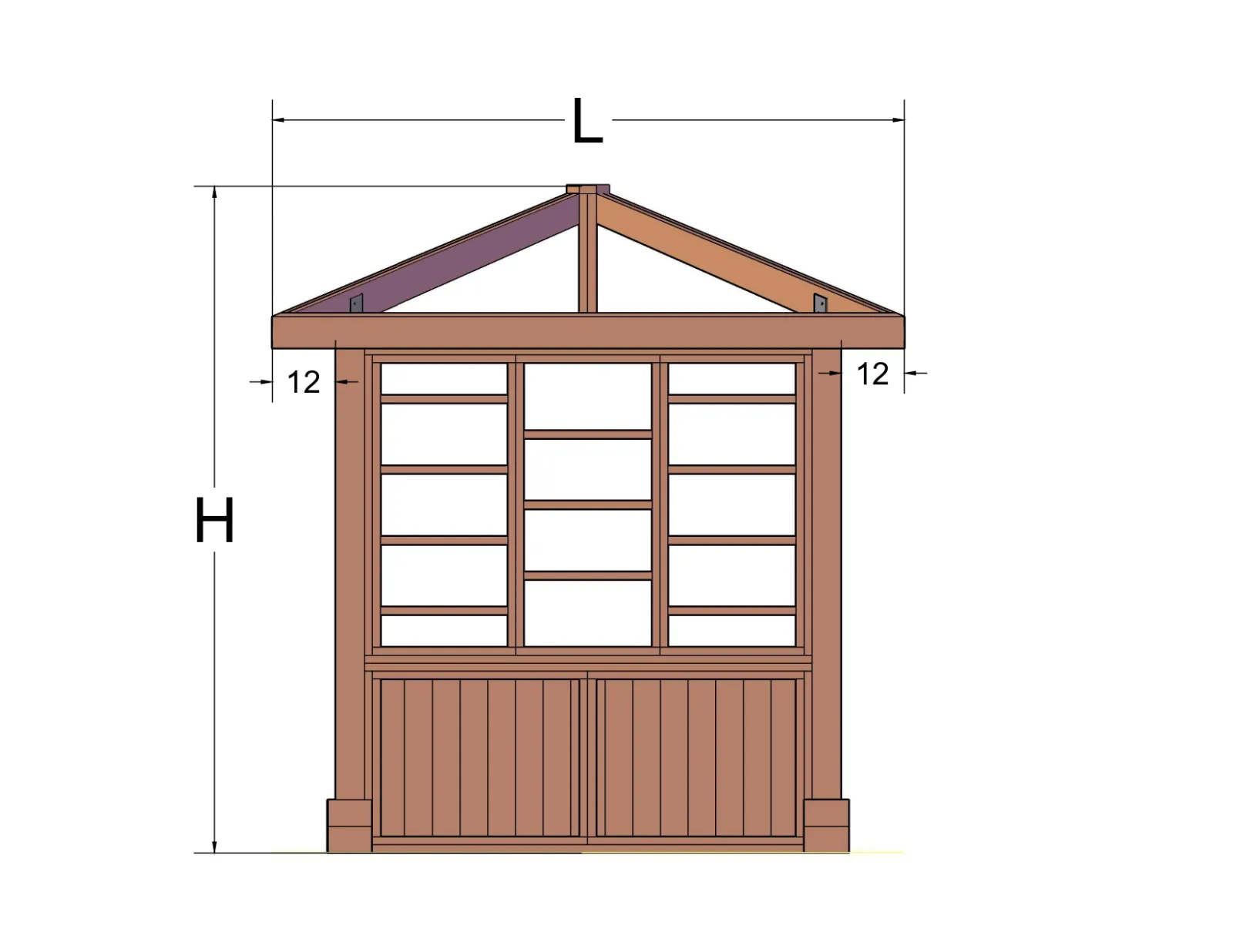

Length View

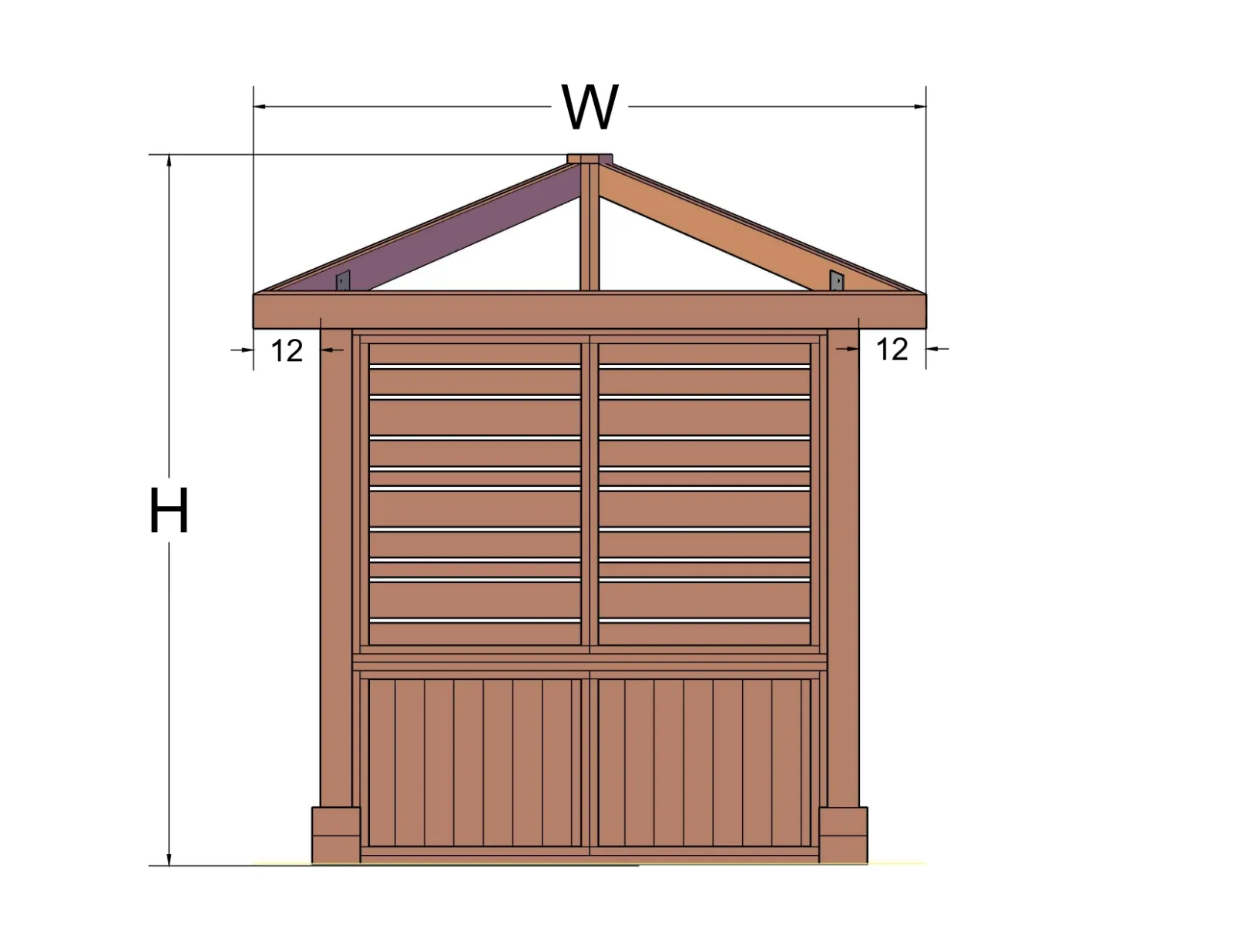

Width View

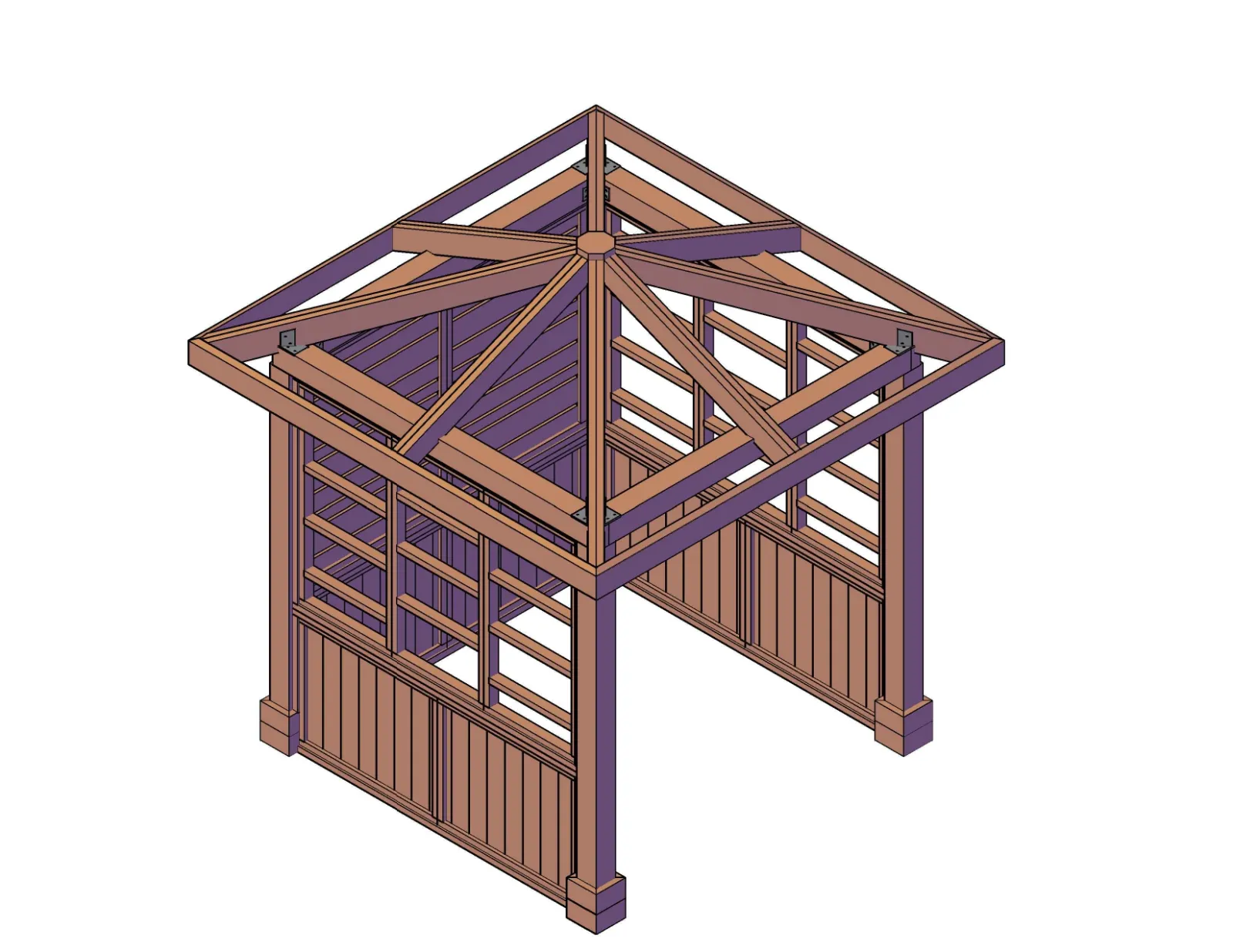

Isometric View
The maximum roof size is 20' in either direction with a 4 post structure.
Each Catalina Island Pergola is completely assembled in the shop prior to shipping to be certain that everything fits together perfectly. All timbers are notched into one another to increase structural strength and to lock all your pergolas timbers in place so that they will never sag, twist or move. There are hundreds of notches in the larger pergolas. Full notching is rarely practiced because it is labor intensive, but it is one of the secrets to a long lasting and beautiful pergola.
All assembly hardware is included and is stainless steel.
