Each time we receive a Pergola order we provide you with a detailed set of drawings based on the options and sizes you have selected. Our drawings will clearly show every detail and dimension from 3 different angles. They are an excellent tool for you to double check everything and make sure everything is exactly as you'd like before we begin building it for you. Drawings are emailed within 5 business days of receiving your order, and we'll revise your drawings as much as needed to make sure all details and sizing issues are perfected prior to beginning construction.

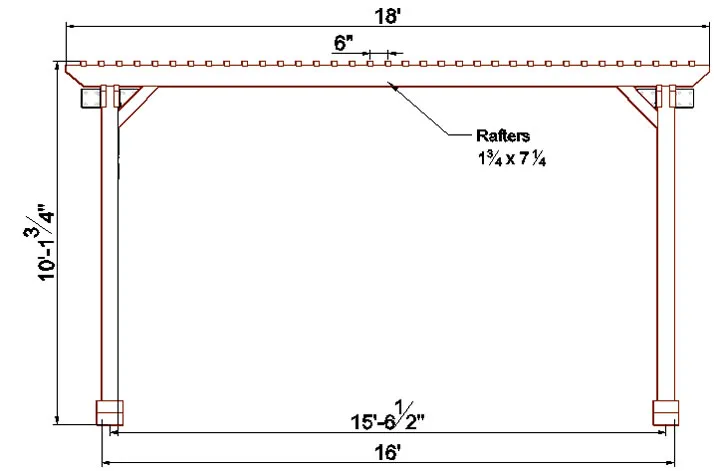

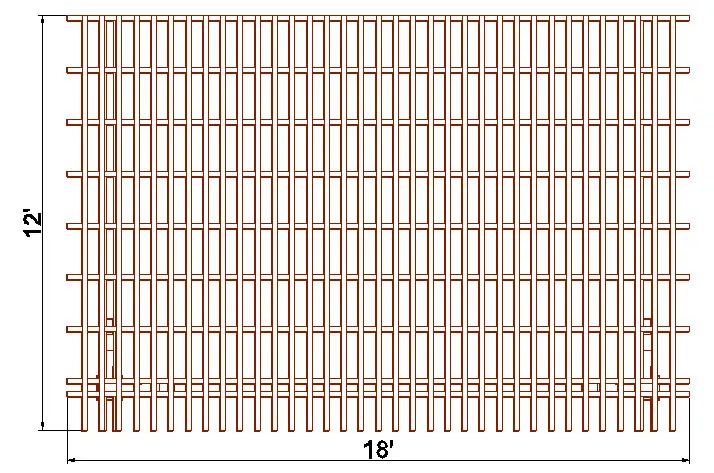

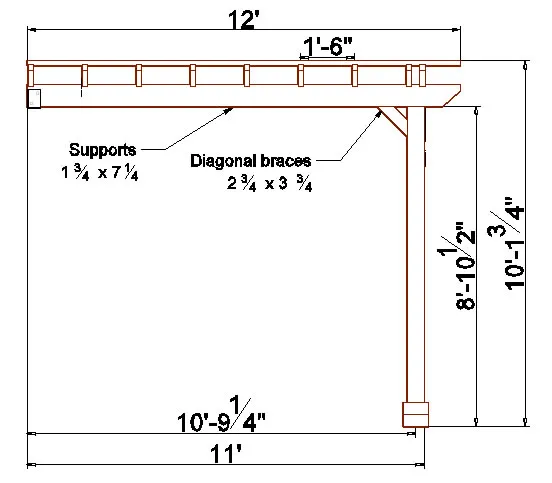

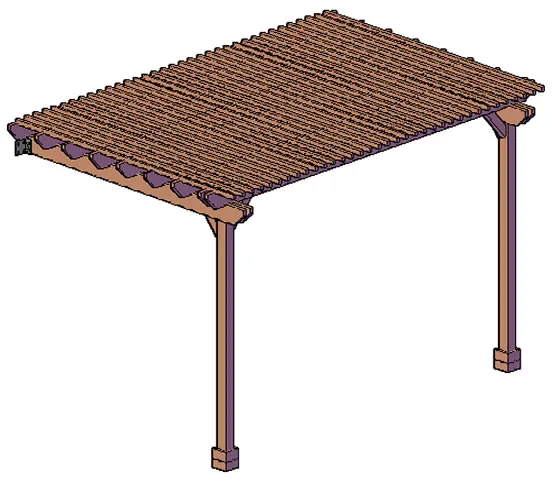

Below are some examples of drawings sent to prior customers:

/media/dimensions_drawings/attached_garden_pergolas_d_01.jpg
/media/dimensions_drawings/attached_garden_pergolas_d_02.jpg
/media/dimensions_drawings/attached_garden_pergolas_d_03.jpg
/media/dimensions_drawings/attached_garden_pergolas_d_04.jpg

Corner posts are 5 1/2" by 5 1/2" (standard sized 6x6s) and are recessed 12" in from roof dimensions (This can be adjusted to meet your needs, just let us know).

Roof support timbers (lintels) and rafters are 1 7/8" x 5 3/4". If you prefer a different sizing or style, simply write what you would like in the comments section or contact us.

Posts normally ship 9' long. 9 posts make the top of the roof 9' and give you an 8' 4" clearance ("ceiling height") under the rafters. About 90% of our pergola customers go with the default 9' post height. If you'd like your pergola taller or shorter, just select Other Height and write in what you would like in the comments section.

The maximum roof size is 20' in either direction with a 4 post structure. The maximum span (with the standard timber sizes mentioned above) is 18' 2 1/2" on center between posts. Structures over 20' in any direction are built with an additional post to support roofs between 20 and 40 feet. For example, a 30' x 20' free standing pergola has 6 posts.

Forever Redwood Pergola kits are completely assembled in the shop prior to shipping to be certain everything fits together perfectly. All timbers are notched into one another to increase structural strength and to lock all your pergola timbers in place so they will never sag, twist or move.  There are hundreds of notches in the larger pergolas. Full notching is rarely practiced because it is labor intensive, but it is one of the secrets to a long lasting, beautiful pergola.

All assembly hardware is stainless steel and included.

Pergola (Roof) Size (ft)Approx. weight
10 x 10705 lbs.
10 x 12795 lbs.
10 x 14885 lbs.
10 x 15930 lbs.
10 x 16975 lbs.
10 x 181065 lbs.
10 x 201155 lbs.
12 x 12903 lbs.
12 x 141011 lbs.
12 x 151065 lbs.
12 x 161119 lbs.
12 x 181227 lbs.
12 x 201335 lbs.
Pergola (Roof) Size (ft)Approx. weight
14 x 141137 lbs.
14 x 161263 lbs.
14 x 181389 lbs.
14 x 201515 lbs.
15 x 151268 lbs.
15 x 181470 lbs.
15 x 201605 lbs.
16 x 161407 lbs.
16 x 181551 lbs.
16 x 201695 lbs.
18 x 181713 lbs.
18 x 201875 lbs.
20 x 202055 lbs.

For additional long-term structural strength, we add solid timber blocking in-between the dual support timbers as shown in the drawing below. With this blocking, the dual supports are in effect converted into one solid 5 3/4 inch x 61/2 inch or 7 1/4 inch x 6 1/2 inch timber as shown below:
